PS9122-F3-N-AX

Invent, Innovate, Integrate

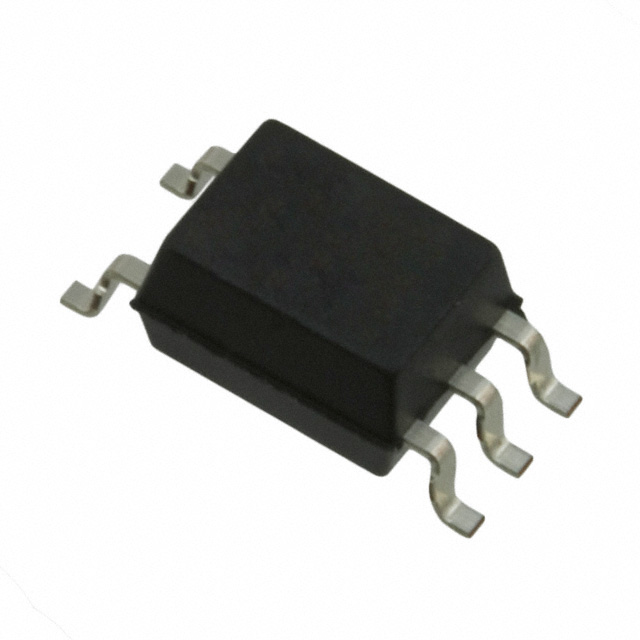

Images are for reference only. See Product Specifications for product details.

Part Number	PS9122-F3-N-AX
Manufacturer	CEL (California Eastern Laboratories)
Description	OPTOISO 3.75KV OPN COLLECTOR 5SO
Category	Isolators
Subcategory	Optoisolators - Logic Output
Series	NEPOC
Data Rate	1Mbps
Input Type	DC
Packaging	Tape & Reel (TR)
Other Names	PS9122-F3-N-AX-ND PS9122-F3-N-AXTR PS9122F3NAX
Output Type	Open Collector
Package Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Mounting Type	Surface Mount
Voltage Supply	2.7 V ~ 3.6 V
Rise Fall Time Typ	60ns, 70ns
Inputs Side1 Side2	1/0
Numberof Channels	1
Voltage Isolation	3750Vrms
Detailed Description	244183
Voltage Forward Vf Typ	1.6V
Current Output Channel	20mA
Operating Temperature	-40°C ~ 100°C
Current D C Forward If Max	25mA
Supplier Device Package	5-SO
Lead Free Status Ro H S Status	Lead free / RoHS Compliant
Moisture Sensitivity Level M S L	1 (Unlimited)
Propagation Delaytp L Htp H L Max	700ns, 500ns
Common Mode Transient Immunity Min	15kV/µs
