    LVDT Transducers (Linear Variable Differential Transformer)

    LVDT Transducers (Linear Variable Differential Transformer)

    1. Home
    2. Categories
    3. Sensors, Transducers
    4. LVDT Transducers (Linear Variable Differential Transformer)
    Manufacturer
    Series
    Operating Temperature
    Features
    Size / Dimension
    Linear Range

    Clear

    Image Part Number Manufacturer Description Series Operating Temperature Features Size / Dimension Linear Range
    Product Image
    		02560992-000 Agastat Relays / TE Connectivity SENSOR LVDT DC-SE 0-12.5MM DC-SE -25°C ~ 85°C General Purpose 132.1mm 12.5mm
    Manufacturer Image
    		02350511-000 Agastat Relays / TE Connectivity SERIES PRECISION GAUGE HEADS GCD 0°C ~ 70°C High Reliability 111mm 6.35mm
    Product Image

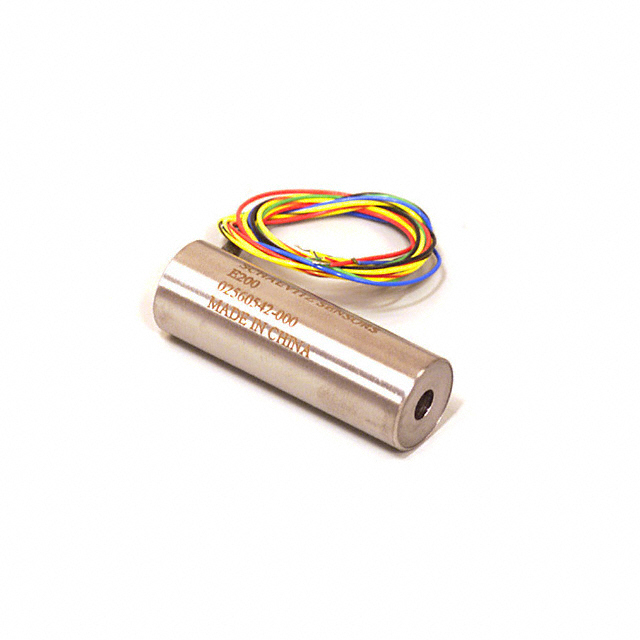

    		02560542-000 Agastat Relays / TE Connectivity SENSOR LVDT E SERIES ECON 5.08MM E -55°C ~ 95°C Economical 57.2mm ±5.08mm
    Product Image
    		02351008-000 Agastat Relays / TE Connectivity SENSOR GAUGE HEAD GCD-SE 12.7MM GCD-SE -25°C ~ 85°C Spring Loaded 146.3mm 12.7mm
    Product Image

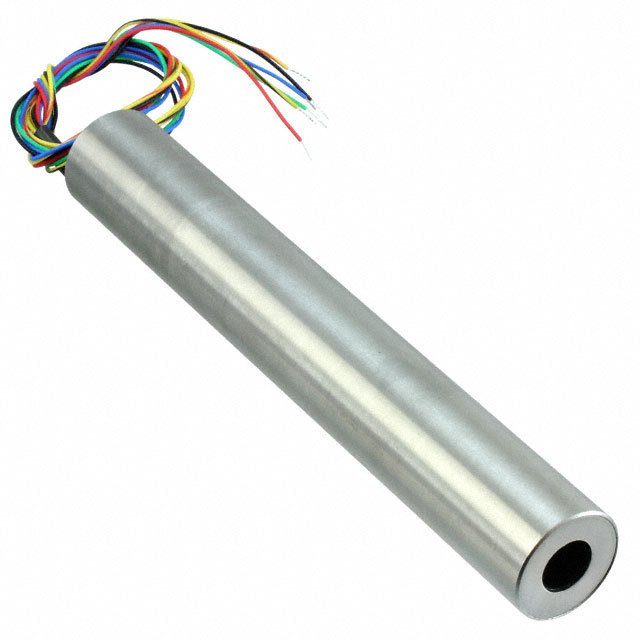

    		02560394-000 Agastat Relays / TE Connectivity GENERAL PURPOSE LVDT SE HR -55°C ~ 150°C High Reliability 139.7mm ±12.7mm
    Product Image

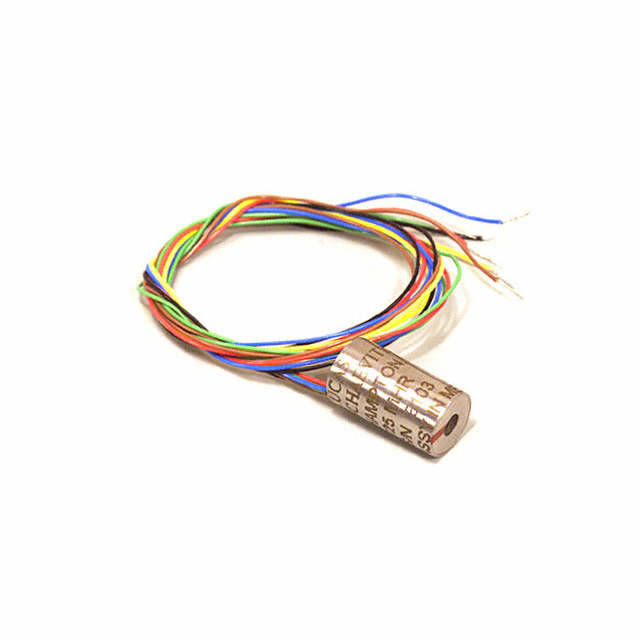

    		02560407-000 Agastat Relays / TE Connectivity SENSOR LVDT MHR SERIES +-0.64MM MHR -55°C ~ 150°C - 16.8mm ±0.64mm
    Product Image
    		02350700-000 Agastat Relays / TE Connectivity LINEAR TRANSDUCER LBB 5°C ~ 60°C Adjustable 49.78mm ±2.5mm
    Manufacturer Image
    		02560390-000 Agastat Relays / TE Connectivity GENERAL PURPOSE LVDT HR HR -55°C ~ 150°C High Reliability 46.0mm ±2.54mm
    Product Image

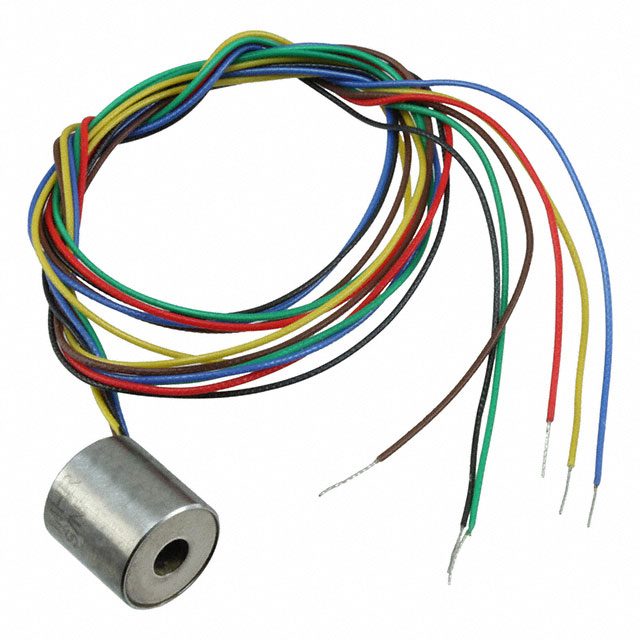

    		02560405-000 Agastat Relays / TE Connectivity GENERAL PURPOSE LVDT HR MHR -55°C ~ 150°C General Purpose 9.5mm ±0.13mm
    Product Image
    		02560389-000 Agastat Relays / TE Connectivity SENSOR LVDT HR SERIES HR -55°C ~ 150°C High Reliability 28.7mm ±1.27mm

    About LVDT Transducers (Linear Variable Differential Transformer)

    LVDT transducers, or linear variable differential transformers, are electromechanical devices designed to convert linear displacement or position changes into electrical signals. LVDT transducers consist of a primary winding and two secondary windings wound around a cylindrical core. As the core moves linearly within the LVDT housing, it induces voltages in the secondary windings proportional to the core's position relative to the primary winding. LVDT transducers offer high accuracy, linearity, and resolution over a wide range of displacement, making them ideal for precision measurement and control applications in industries such as aerospace, automotive, and manufacturing. LVDT transducers provide reliable and maintenance-free operation in harsh environments and can withstand shock, vibration, and temperature variations.
