    Rectangular - Board to Board Connectors - Headers, Male Pins

    Rectangular - Board to Board Connectors - Headers, Male Pins

    1. Home
    2. Categories
    3. Connectors, Interconnects
    4. Rectangular - Board to Board Connectors - Headers, Male Pins
    Manufacturer
    Series
    Features
    Mounting Type
    RoHS Status
    Manufacturer Part Number
    Contact Finish Thickness
    Number of Positions
    Color
    Number of Conductors

    Clear

    Image Part Number Manufacturer Description Series Features Mounting Type RoHS Status Manufacturer Part Number Contact Finish Thickness Number of Positions Color Number of Conductors
    Default Logo
    		6-534257-5 N/A CONN HEADER 50POS DL VERT GOLD AMPMODU Mod II - Through Hole Tube 6-534257-5 Gold 50 Black 0.100" (2.54mm)
    Default Logo
    		9-176771-0 N/A CONN HEADER .049" 30POS SMT TIN FP - Surface Mount Tube 9-176771-0 Tin 30 Black 0.049" (1.25mm)
    Product Image

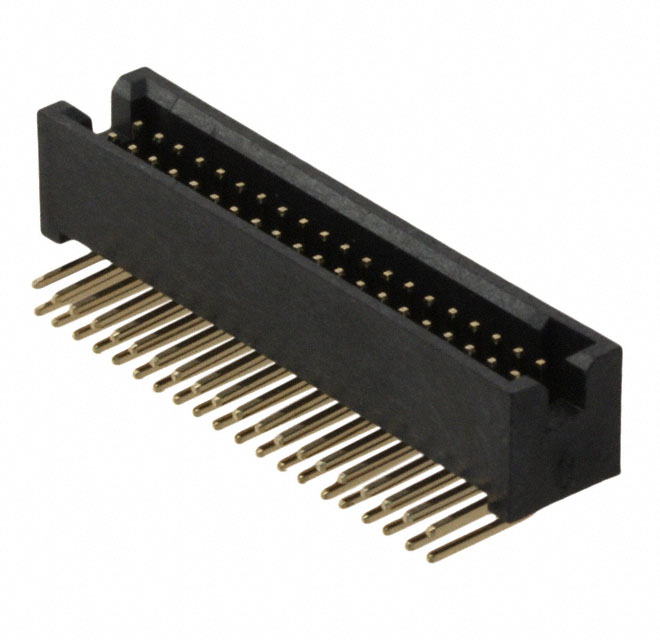

    		M50-4802045 N/A CONN HDR 1.27MM R/A AU 40POS Archer M50 - Through Hole, Right Angle Tube M50-4802045 Gold 40 Black 0.050" (1.27mm)
    Default Logo
    		6-102802-4 N/A CONN HEADR 16POS .100" T/H R/A AMPMODU Mod II - Through Hole, Right Angle Tube 6-102802-4 Gold 16 Black 0.100" (2.54mm)
    Default Logo
    		M50-4800945 N/A CONN HDR 1.27MM R/A AU 18POS Archer M50 - Through Hole, Right Angle Tube M50-4800945 Gold 18 Black 0.050" (1.27mm)
    Product Image

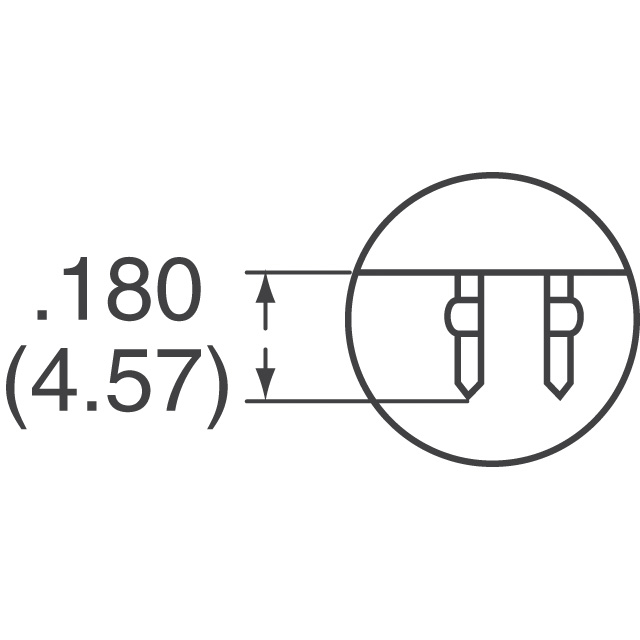

    		1-102692-7 N/A CONN HEADER VERT .100 30POS 30AU AMPMODU Mod II - Through Hole Tube 1-102692-7 Gold 30 Black 0.100" (2.54mm)
    Default Logo
    		4-174821-8 N/A CONN HEADR 0.049" 18POS SMT TIN FP Board Guide Surface Mount Bulk 4-174821-8 Tin 18 Black 0.049" (1.25mm)
    Default Logo
    		7-174821-2 N/A CONN HEADR 0.049" 12POS SMT TIN FP Board Guide Surface Mount Bulk 7-174821-2 Tin 12 Black 0.049" (1.25mm)
    Product Image

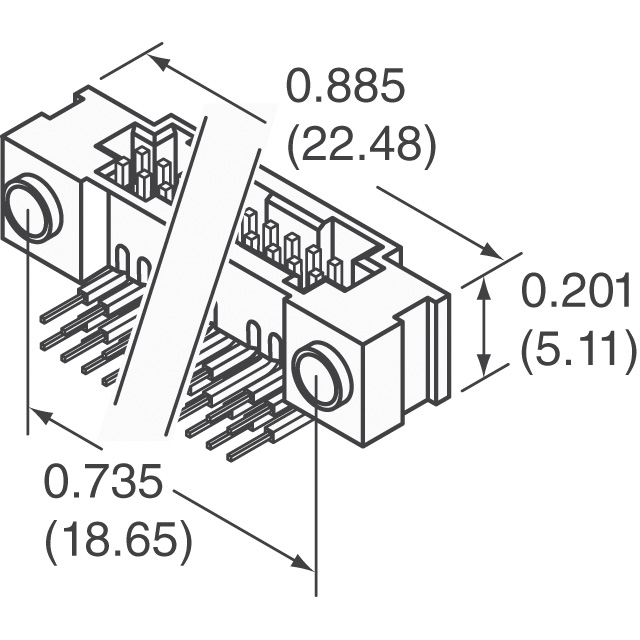

    		87402-110LF Amphenol FCI CONN HEADER 20POS .050 R/A PCB Rib-Cage™ Mounting Flange Through Hole, Right Angle Tube 87402-110LF Gold or Gold, GXT™ 20 Natural 0.050" (1.27mm)
    Default Logo
    		5-175643-2 N/A CONN HEADR .049" 22POS SMT TIN FP Board Guide Surface Mount Tube 5-175643-2 Tin 22 Black 0.049" (1.25mm)

    About Rectangular - Board to Board Connectors - Headers, Male Pins

    Board-to-board connectors with headers and male pins serve as the mating interface for female sockets on another printed circuit board (PCB). These connectors establish secure electrical connections, enabling the transmission of signals and power between interconnected boards. Widely used in electronic devices and systems, these connectors offer a standardized and reliable solution for creating robust connections between PCBs, facilitating efficient communication and collaboration between various components.
