Name: 310-87-142-01-666101
Brand: Preci-Dip
SKU: 310-87-142-01-666101
Rating: 5 (457 reviews)

Invent, Innovate, Integrate

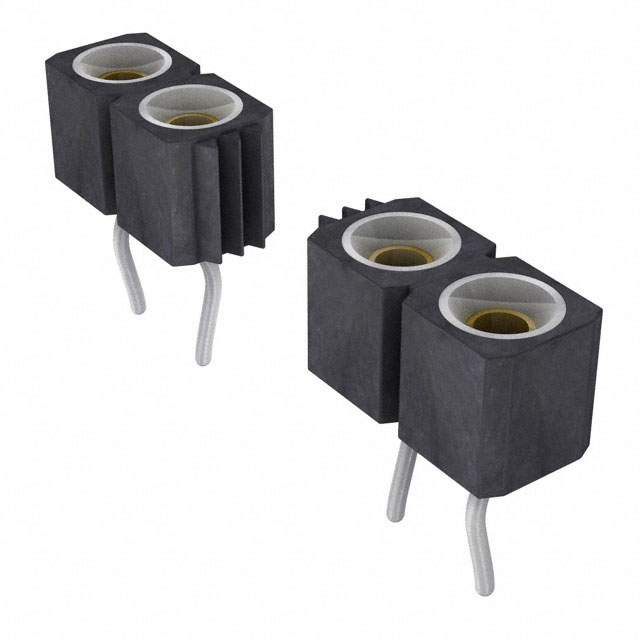

Images are for reference only. See Product Specifications for product details.

Part Number	310-87-142-01-666101
Manufacturer	Preci-Dip
Description	PCB CONN SOLDER TAIL
Category	Connectors, Interconnects
Subcategory	Rectangular Connectors - Headers, Receptacles, Female Sockets
Style	Board to Board
Series	310
Packaging	Bulk
Contact Type	Female Socket
Pitch Mating	0.100" (2.54mm)
Termination	Press-Fit, Solder
Contact Shape	Circular
Mounting Type	Through Hole
Numberof Rows	1
Connector Type	Socket
Current Rating	3A
Fastening Type	Push-Pull
Contact Material	Beryllium Copper
Insulation Color	Black
Insulation Height	0.165" (4.20mm)
Contact Finish Post	Tin
Contact Length Post	0.122" (3.10mm)
Numberof Positions	42
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Finish Mating	Gold
Detailed Description	42 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
Operating Temperature	-55°C ~ 125°C
Numberof Positions Loaded	All
Lead Free Status Ro H S Status	Lead free / RoHS Compliant
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level M S L	1 (Unlimited)
Contact Finish Thickness Mating	Flash
