850-10-015-20-001000

Invent, Innovate, Integrate

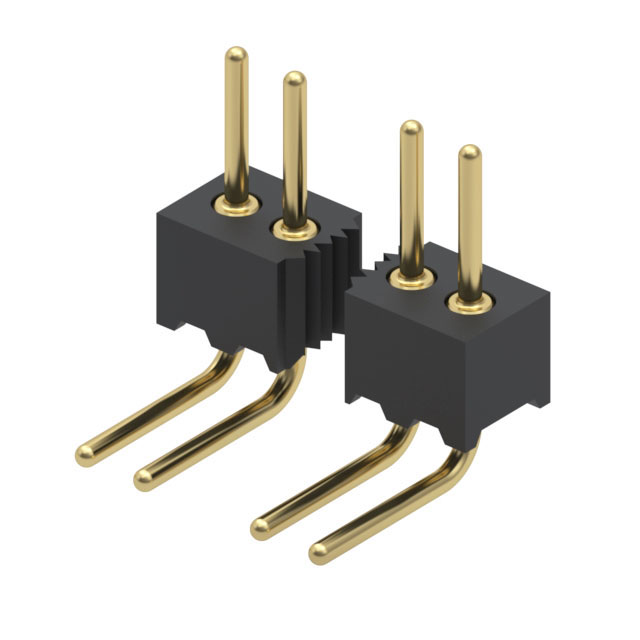

Images are for reference only. See Product Specifications for product details.

Part Number	850-10-015-20-001000
Manufacturer	Mill-Max
Description	CONN HDR SNG RA
Category	Connectors, Interconnects
Subcategory	Rectangular Connectors - Headers, Male Pins
Style	Board to Board
Series	850
Packaging	Bulk
Shrouding	Unshrouded
Ro H S Status	RoHS Compliant
Contact Type	Male Pin
Pitch Mating	0.050" (1.27mm)
Termination	Solder
Contact Shape	Circular
Mounting Type	Through Hole, Right Angle
Numberof Rows	1
Connector Type	Header
Fastening Type	Push-Pull
Contact Material	Brass Alloy
Insulation Color	Black
Insulation Height	0.087" (2.20mm)
Contact Finish Post	Gold
Contact Length Post	0.118" (3.00mm)
Numberof Positions	15
Insulation Material	Polyamide (PA46), Nylon 4/6
Contact Finish Mating	Gold
Contact Length Mating	0.118" (3.00mm)
Detailed Description	424544
Numberof Positions Loaded	All
Lead Free Status Ro H S Status	RoHS Compliant
Contact Finish Thickness Post	10.0µin (0.25µm)
Contact Finish Thickness Mating	10.0µin (0.25µm)
