800-10-062-10-001000

Invent, Innovate, Integrate

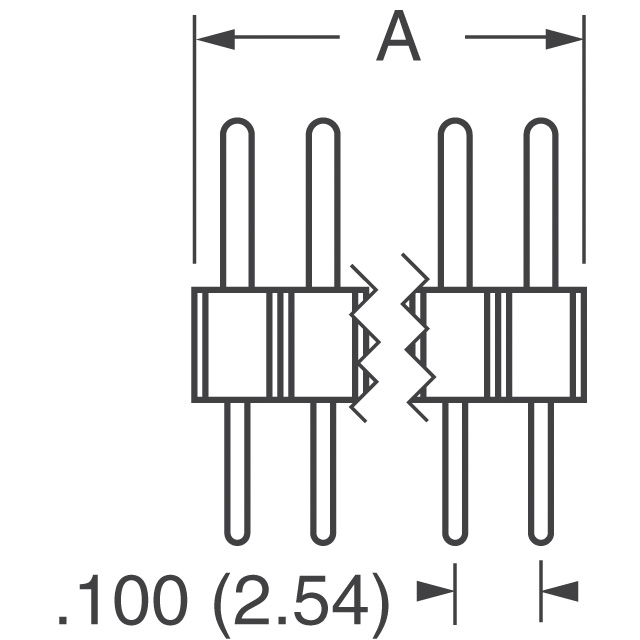

Images are for reference only. See Product Specifications for product details.

Part Number	800-10-062-10-001000
Manufacturer	Mill-Max
Description	SIP HEADER 62 POS STRAIGHT PCB
Category	Connectors, Interconnects
Subcategory	Rectangular Connectors - Headers, Male Pins
Style	Board to Board
Series	800
Packaging	Bulk
Shrouding	Unshrouded
Other Names	800-10-062-10-001 8001006210001 ED7262 ED7262-ND ED7264-62
Contact Type	Male Pin
Pitch Mating	0.100" (2.54mm)
Termination	Solder
Contact Shape	Circular
Mounting Type	Through Hole
Numberof Rows	1
Connector Type	Header
Fastening Type	Push-Pull
Contact Material	Brass Alloy
Insulation Color	Black
Insulation Height	0.110" (2.79mm)
Contact Finish Post	Gold
Contact Length Post	0.118" (3.00mm)
Numberof Positions	62
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Finish Mating	Gold
Contact Length Mating	0.195" (4.95mm)
Detailed Description	423459
Overall Contact Length	0.438" (11.12mm)
Numberof Positions Loaded	All
Lead Free Status Ro H S Status	Lead free / RoHS Compliant
Contact Finish Thickness Post	10.0µin (0.25µm)
Moisture Sensitivity Level M S L	1 (Unlimited)
Contact Finish Thickness Mating	10.0µin (0.25µm)
