M24308/4-14Z

Invent, Innovate, Integrate

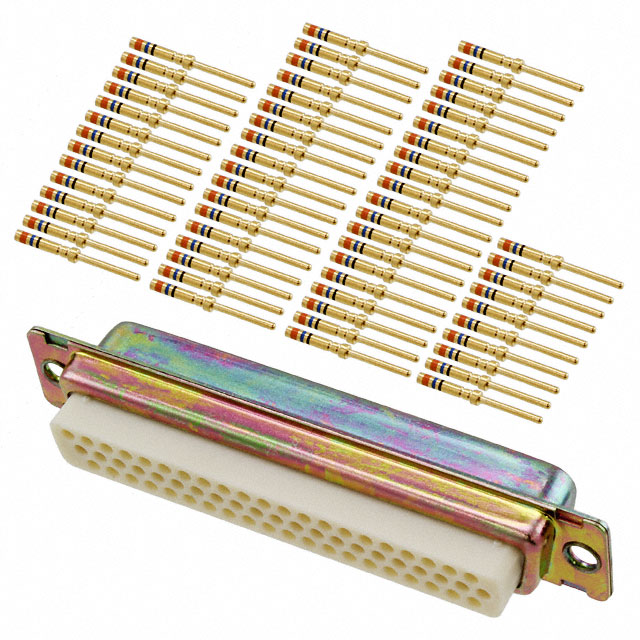

Images are for reference only. See Product Specifications for product details.

Part Number	M24308/4-14Z
Manufacturer	4D Systems
Description	CONN DSUB HD PLUG 62POS PNL MNT
Category	Connectors, Interconnects
Subcategory	D-Sub Connectors
Series	MIL-DTL-24308, D*MAM
Features	Shielded
Other Names	1200-1139 1200-1139-MIL 130777-0008 IM24308/4-14 IM24308/4-14-ND IM24308/4-14Z-ND M24308414Z
Ro H S Status	Bulk
Contact Form	4 (DC, C) High Density
Termination	Crimp
Cable Opening	Thermoplastic
Mounting Type	Panel Mount
Numberof Rows	3
Cable Diameter	50µin (1.27µm)
Connector Type	Plug, Male Pins
Current Rating	7.5A
Connector Usage	D-Sub, High Density
Numberof Positions	62
Stacking Direction	Signal
Operating Temperature	-55°C ~ 150°C
Contact Finish Thickness	Gold
Manufacturer Part Number	M24308/4-14Z
Current Rating Per Contact	Housing/Shell (Unthreaded)
Lead Free Status Ro H S Status	Contains lead / RoHS non-compliant
Shell Size Insert Convert From	Steel, Yellow Chromate Plated Zinc
Moisture Sensitivity Level M S L	1 (Unlimited)
