D38999/24WD19PN

Invent, Innovate, Integrate

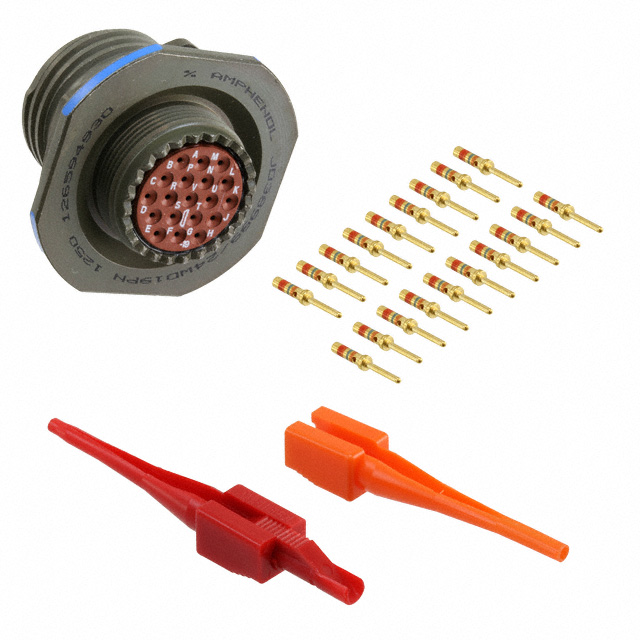

Images are for reference only. See Product Specifications for product details.

Part Number	D38999/24WD19PN
Manufacturer	Amphenol Aerospace Operations
Description	CONN RCPT MALE 19POS GOLD CRIMP
Category	Connectors, Interconnects
Subcategory	Circular Connectors
Color	Olive Drab
Series	Military, MIL-DTL-38999 Series III, Tri-Start™ TV
Packaging	Bulk
Shielding	Shielded
Other Names	1069-1078 1069-1078-MIL 88-552064-19P AD38999/24WD19PN-ND D38999/24WD19PN-MIL
Orientation	N (Normal)
Shell Finish	Olive Drab Cadmium
Termination	Crimp
Applications	Aviation, Marine, Military
Mounting Type	Panel Mount
Shell Size M I L	D
Connector Type	Receptacle, Male Pins
Fastening Type	Threaded
Shell Material	Aluminum
Insert Material	Thermoplastic
Contact Material	Copper Alloy
Mounting Feature	Bulkhead - Front Side Nut
Shell Size Insert	15-19
Ingress Protection	Environment Resistant
Numberof Positions	19
Contact Finish Mating	Gold
Detailed Description	450468
Operating Temperature	-65°C ~ 175°C
Lead Free Status Ro H S Status	Lead free / RoHS non-compliant
Moisture Sensitivity Level M S L	1 (Unlimited)
Contact Finish Thickness Mating	50.0µin (1.27µm)
