Card Edge Connectors - Edgeboard Connectors
Card Edge Connectors - Edgeboard Connectors
- Products
- Connectors, Interconnects
- Card Edge Connectors - Edgeboard Connectors
Manufacturer
Series
Operating Temperature
Features
Packaging
Mounting Type
Number of Positions
Color
Pitch
Clear Filters
Loading products…
| Image | Part Number | Manufacturer | Description | Series | Operating Temperature | Features | Packaging | Mounting Type | Number of Positions | Color | Pitch | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-531341-0 | Agastat Relays / TE Connectivity | CONN EDGE DUAL FMALE 56POS 0.125 | Standard Edge II | -55°C ~ 85°C | - | Bulk | Through Hole | 56 | Black | 0.125" (3.18mm) | - |
|
ECC25DCCS | Sullins Connector Solutions | CONN EDGE DUAL FMALE 50POS 0.100 | - | -65°C ~ 125°C | - | Tray | Through Hole, Right Angle | 50 | - | 0.100" (2.54mm) | - |
|
|
GSM28DTBT-S189 | Sullins Connector Solutions | CONN EDGE DUAL FMALE 56POS 0.156 | - | -65°C ~ 125°C | - | Tray | Through Hole, Right Angle | 56 | Black | 0.156" (3.96mm) | - |
|
|
ESM12DRSN-S664 | Sullins Connector Solutions | CONN EDGE DUAL FMALE 24POS 0.156 | - | -65°C ~ 125°C | - | Tray | Through Hole | 24 | Blue | 0.156" (3.96mm) | - |
|

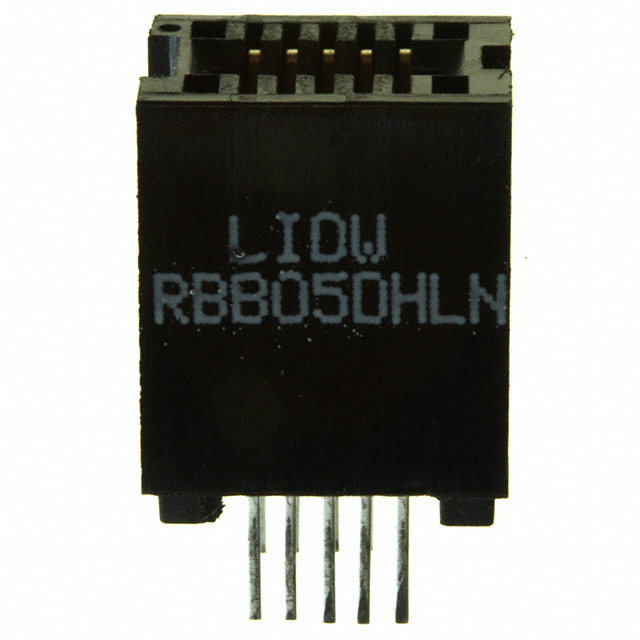

RBB05DHLN | Sullins Connector Solutions | CONN EDGE DUAL FMALE 10POS 0.050 | - | -65°C ~ 125°C | - | Tube | Through Hole | 10 | Black | 0.050" (1.27mm) | - |
|
|
EMC40DREN-S13 | Sullins Connector Solutions | CONN EDGE DUAL FMALE 80POS 0.100 | - | -65°C ~ 125°C | Card Extender | Tube | Board Edge, Straddle Mount | 80 | Blue | 0.100" (2.54mm) | - |
|
|
FMB66DYRR | Sullins Connector Solutions | CONN EDGE DUAL FMALE 132POS .050 | - | -65°C ~ 200°C | Board Lock, Card Extender | Tube | Board Edge, Straddle Mount | 132 | Black | 0.050" (1.27mm) | - |
|

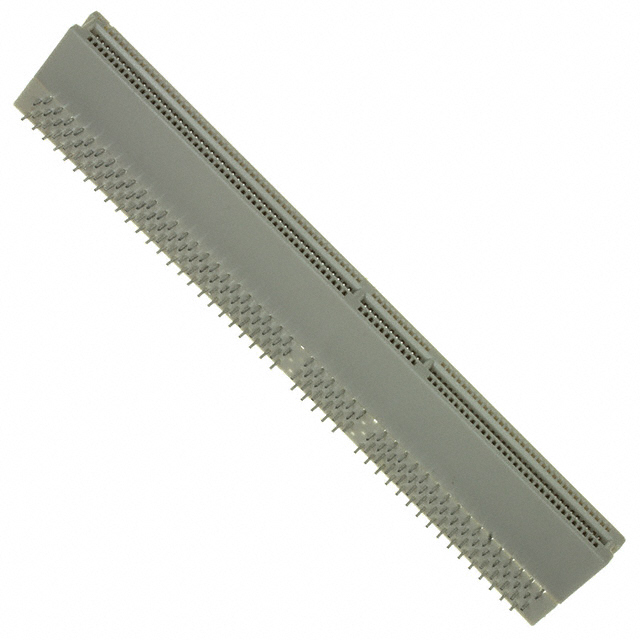

TRWB092DKAN-T250 | Sullins Connector Solutions | CONN PCI CARDEDGE FEMALE 184POS | - | -55°C ~ 85°C | - | Tray | Through Hole, Right Angle | 184 | White | 0.050" (1.27mm) | - |
|
|
GBA30DTBI | Sullins Connector Solutions | CONN EDGE DUAL FMALE 60POS 0.125 | - | -65°C ~ 125°C | - | Tray | Through Hole, Right Angle | 60 | Black | 0.125" (3.18mm) | - |
|
|
AMC55DTKI-S288 | Sullins Connector Solutions | CONN EDGE DUAL FMALE 110POS .100 | - | -65°C ~ 150°C | Card Extender | Tray | Board Edge, Straddle Mount | 110 | - | 0.100" (2.54mm) | - |
About Card Edge Connectors - Edgeboard Connectors
Edgeboard connectors in card edge connectors are critical elements that facilitate the connection between printed circuit boards (PCBs) and electronic components. These connectors feature contacts that align with the edge of the PCB, providing a reliable interface for signal transmission. Card edge connectors with edgeboard connectors offer a standardized and space-efficient solution for internal connections in electronic devices, contributing to the efficient design and assembly of PCBs.
