    Backplane Connectors - Hard Metric, Standard

    Backplane Connectors - Hard Metric, Standard

    1. Home
    2. Categories
    3. Connectors, Interconnects
    4. Backplane Connectors - Hard Metric, Standard
    Manufacturer
    Series
    Operating Temperature
    Features
    Current Rating
    Packaging
    Mounting Type
    Contact Finish
    Contact Finish Thickness
    Number of Positions

    Clear

    Image Part Number Manufacturer Description Series Operating Temperature Features Current Rating Packaging Mounting Type Contact Finish Contact Finish Thickness Number of Positions
    Product Image

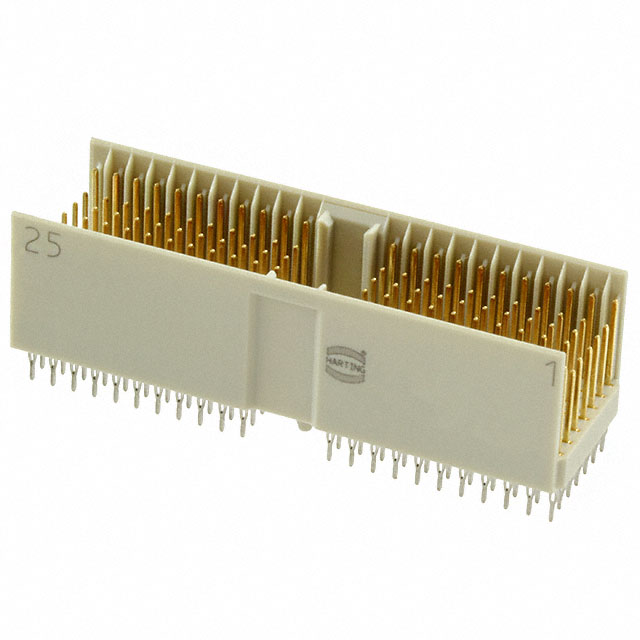

    		17011541205 HARTING HAR-BUS HM MEL. TYP A, AFS 1, TU har-bus® HM -55°C ~ 125°C Board Guide 1A Tube Through Hole Gold or Gold-Palladium - 154 (110 + 44 Ground)
    Manufacturer Image
    		17063082205 HARTING HAR-BUS HM MEL., TYP PCIEINT.,AF har-bus® HM -55°C ~ 125°C - 1A - Through Hole Gold or Gold-Palladium - -
    Manufacturer Image
    		HM2P70PDU175N9LF Amphenol FCI MPAC 5R ST PF HDR Millipacs® -55°C ~ 125°C - 1.5A Tray Through Hole Gold 30.0µin (0.76µm) 132 (110 + 22 Ground)
    Product Image

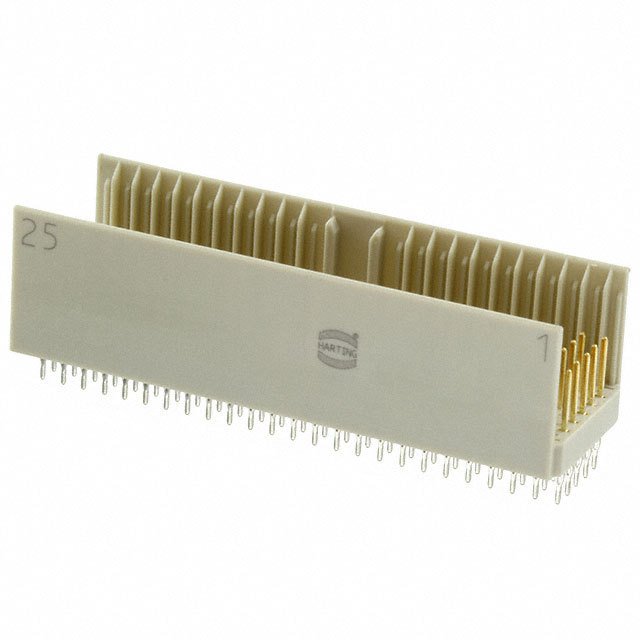

    		17151252201 HARTING HAR-BUS HM MEL., TYP AB-25, AFS har-bus® HM -55°C ~ 125°C - 1A Tube Through Hole Gold or Gold-Palladium - 125
    Default Logo
    		HP6-252S-1.27DS(78) N/A CONNECTOR - - - - - - - - -
    Manufacturer Image
    		HM2R02PA5101E9LF Amphenol FCI MPACS 5R RA REC 25P Millipacs® -55°C ~ 125°C Upper and Lower Shield 1.5A Tray Board Edge, Through Hole, Right Angle Gold 30.0µin (0.76µm) 125
    Manufacturer Image
    		HSHM-H110A5-5CP1-TG30 3M CONN HEADER HSHM 110POS 5ROW STR MetPak™ HSHM -55°C ~ 125°C Board Guide, Shielded 1A Bulk Through Hole Gold 30.0µin (0.76µm) 110
    Manufacturer Image
    		HM2P07PDM2C5N9LF Amphenol FCI CONN HEADER 110POS TYPE A VERT Millipacs® -55°C ~ 125°C Board Guide 1.5A Tray Through Hole Gold Flash 132 (110 + 22 Ground)
    Manufacturer Image
    		HM2P67PDT2N1N9 Amphenol FCI CONN HEADER 95POS TYPE AB VERT Millipacs® -55°C ~ 125°C - 1.5A Tray Through Hole Gold Flash 127 (95 + 32 Ground)
    Product Image

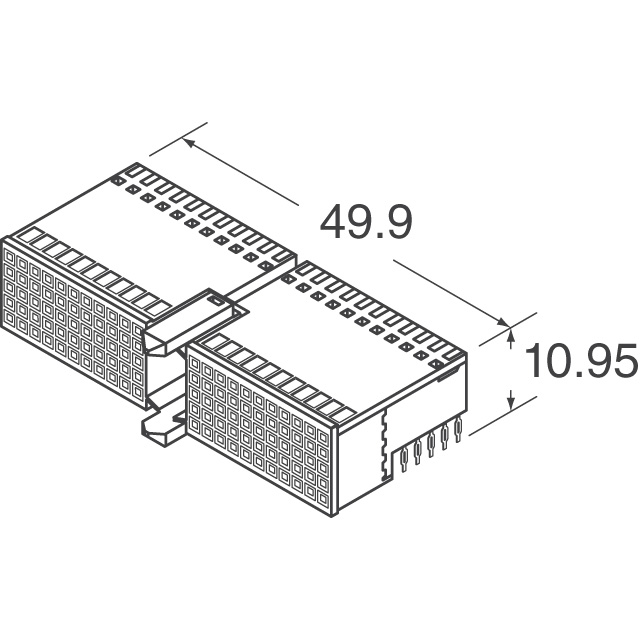

    		5100147-1 Agastat Relays / TE Connectivity CONN RCPT HM 110POS RT ANG 2MM Z-PACK -55°C ~ 125°C - 1.5A Tube Board Edge, Through Hole, Right Angle Gold 30.0µin (0.76µm) 110

    About Backplane Connectors - Hard Metric, Standard

    Hard metric backplane connectors adhere to specific industry standards for connector design, offering a standardized interface for connecting PCBs within a backplane system. These connectors follow defined metrics and specifications, ensuring compatibility and interoperability in applications where standardization is crucial. Used in telecommunications, networking, and industrial systems, hard metric backplane connectors provide a reliable and standardized solution for high-speed data transmission between PCBs.
